This Klippain "Shake&Tune" repository is a standalone module from the Klippain ecosystem, designed to automate and calibrate the input shaper system on your Klipper 3D printer with a streamlined workflow and insightful vizualisations.

It operates in two steps:

Utilizing specially tailored Klipper macros, it initiates tests on either the belts or the printer X/Y axis to measure the machine axes behavior. This is basically an automated call to the Klipper TEST_RESONANCES macro with custom parameters.
Then a custom Python script is called to:
1. Generate insightful and improved graphs, aiding in parameter tuning for the Klipper [input_shaper] system (including best shaper choice, resonant frequency and damping ratio) or diagnosing and rectifying mechanical issues (like belt tension, defective bearings, etc..)
2. Relocates the graphs and associated CSV files to your Klipper config folder for easy access via Mainsail/Fluidd to eliminate the need for SSH.
3. Manages the folder by retaining only the most recent results (default setting of keeping the latest three sets).

Check out the detailed documentation of the Shake&Tune module here. You can also look at the documentation for each type of graph by directly clicking on them below to better understand your results and tune your machine!

Belts graph	Axis input shaper graphs	Vibrations graph

Installation

Follow these steps to install the Shake&Tune module in your printer:

Be sure to have a working accelerometer on your machine. You can follow the official Measuring Resonances Klipper documentation to configure one. Validate with an ACCELEROMETER_QUERY command that everything works correctly.

Then, you can install the Shake&Tune package by running over SSH on your printer:

wget -O - https://raw.githubusercontent.com/Frix-x/klippain-shaketune/main/install.sh | bash

Finally, append the following to your printer.cfg file and restart Klipper (if prefered, you can include only the needed macros: using *.cfg is a convenient way to include them all at once):
```
[include K-ShakeTune/*.cfg]
```

Optionally, if you want to get automatic updates, add the following to your moonraker.cfg file:

[update_manager Klippain-ShakeTune]
type: git_repo
path: ~/klippain_shaketune
channel: beta
origin: https://github.com/Frix-x/klippain-shaketune.git
primary_branch: main
managed_services: klipper
install_script: install.sh

Note

:

If already using my old IS workflow scripts, please remove everything before installing this new module. This include the macros, the Python scripts, the plot_graph.sh and the [gcode_shell_command plot_graph] section that are not needed anymore.

Usage

Ensure your machine is homed, then invoke one of the following macros as needed:

AXES_MAP_CALIBRATION to automatically find Klipper's axes_map parameter for your accelerometer orientation (be careful, this is experimental for now).

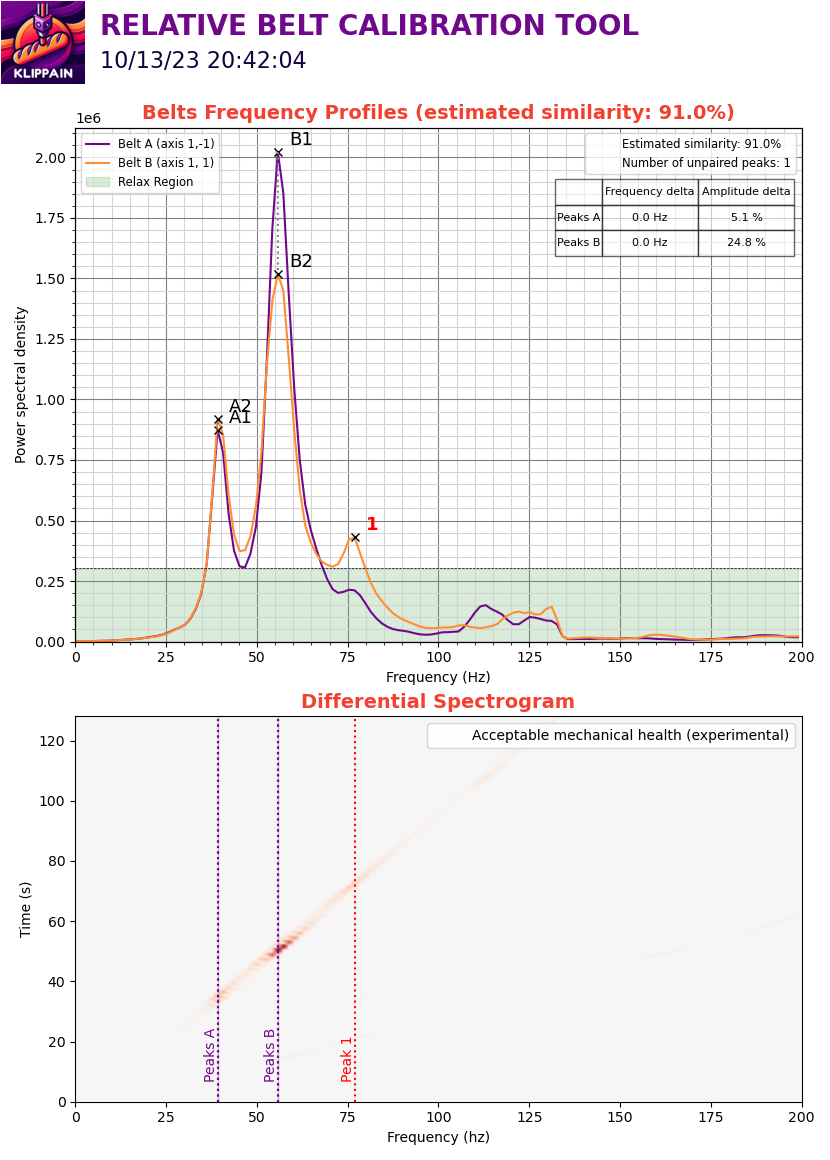

BELTS_SHAPER_CALIBRATION for belt resonance graphs, useful for verifying belt tension and differential belt paths behavior.

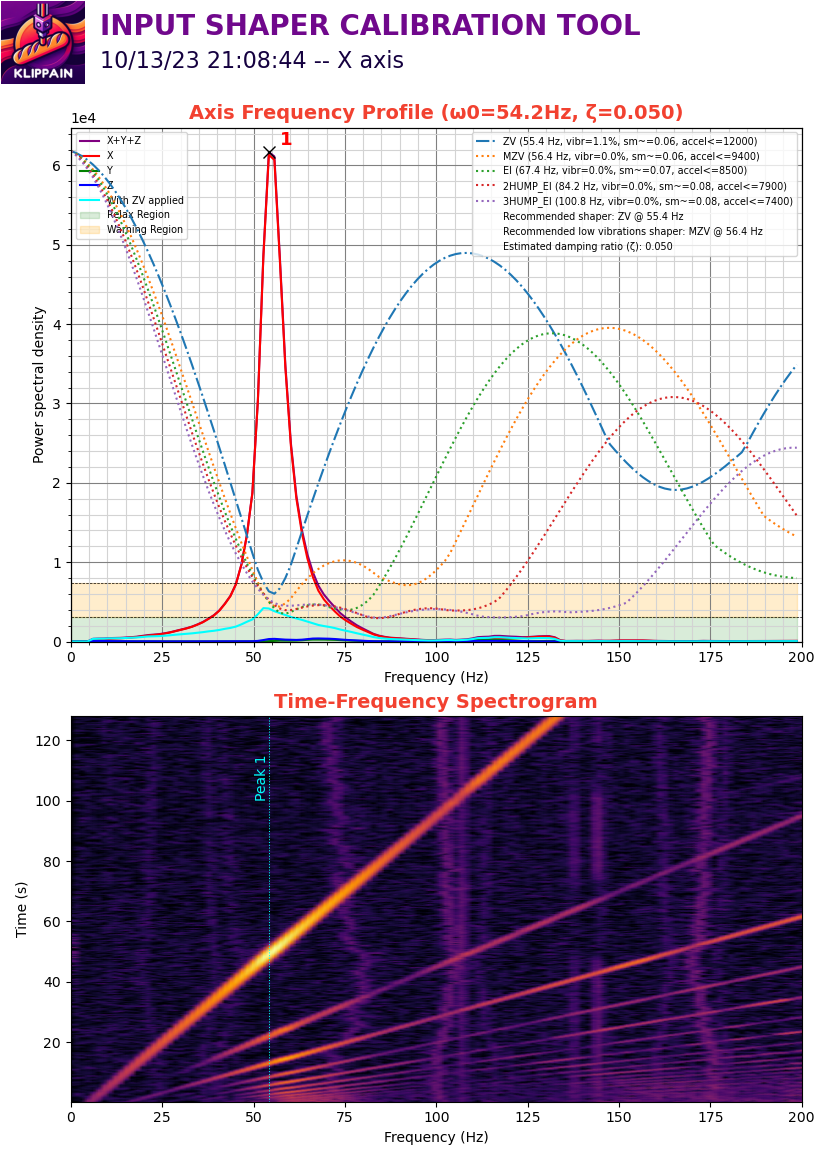

AXES_SHAPER_CALIBRATION for input shaper graphs to mitigate ringing/ghosting by tuning Klipper's input shaper system.

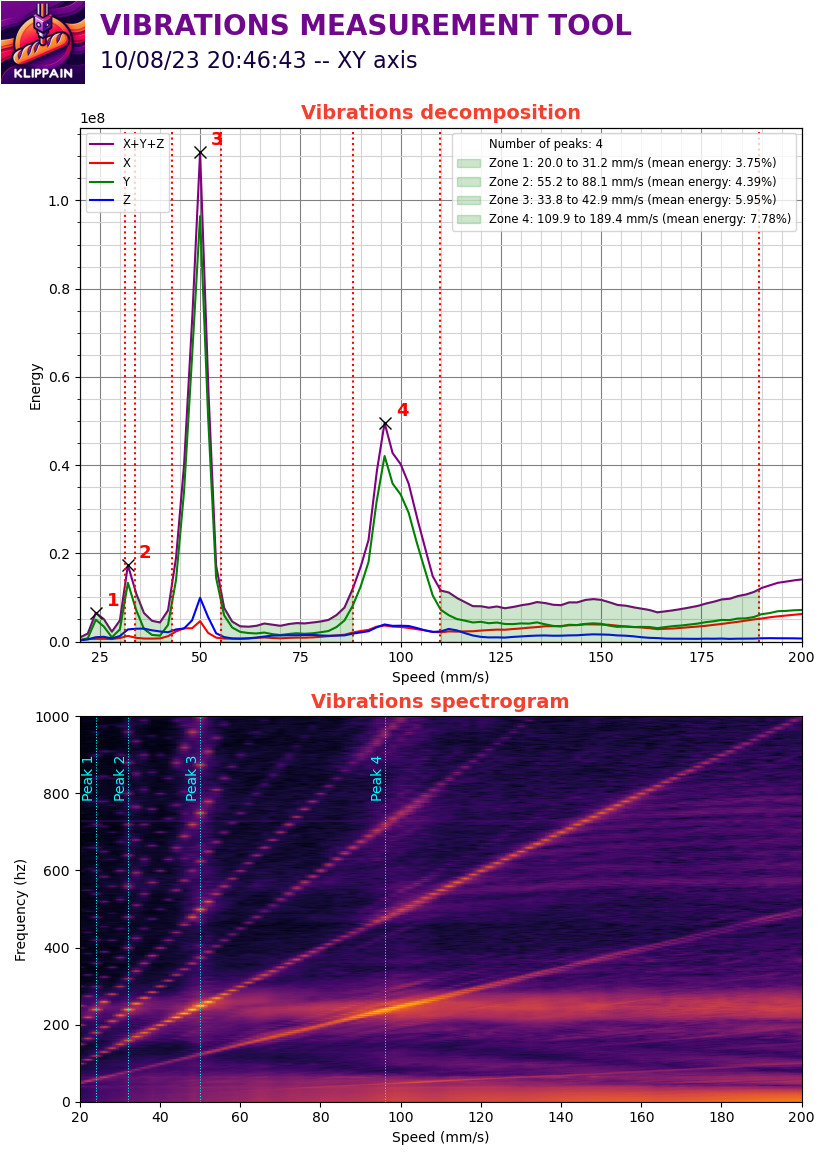

VIBRATIONS_CALIBRATION for machine and motors vibration graphs, used to optimize your slicer speed profiles and TMC drivers parameters.
EXCITATE_AXIS_AT_FREQ to sustain a specific excitation frequency, useful to let you inspect and find out what is resonating.

For further insights on the usage of these macros and the generated graphs, refer to the K-Shake&Tune module documentation.
